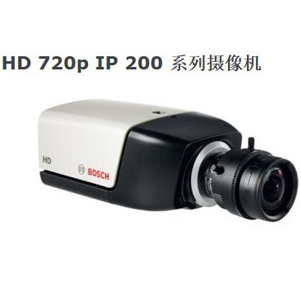

Bosch NBC-265-P 720P Fixed IP HD Video Camera
Product Numbers:NBC-265-P
Price:0
Product introduction:Bosch NBC-265-P 720P Fixed IP HD Video Camera
Bosch NBC-265-P 720P Fixed IP HD Video Camera
Integrated network video monitoring system
Up to the standard of HD 720 p high-definition images
Transport both h. 264 video stream and a M - JPEG flow
The camera internal storage image
Easy to connect
Accord with standard of ONVIF
The input voltage + 12 VDC power supply or Ethernet
The maximum power consumption 3.6 watts
Quarter inch CMOS image sensor type
The image sensor, 1280 x 1280 pixels
1.0 sensitivity lx, pro series
720 p video resolution, 4 CIF/D1, VGA, CIF, QVGA
H. 264 video compression MP (Main Profile);H. 264 BP + (Baseline Profile Plus);M - JPEG
Biggest frame rate of 30 FPS (M - JPEG frame rate may vary from system to system load)
Manual zoom lens type 2.8 to 8 mm, manual aperture, pro series to shut down
The lens bridge type CS lens
Alarm input + 9 to 30 VDC
Relay output 24 VAC/VDC, 1 A
Built-in microphone audio input
Line input jack
Audio output circuit output jack
Two-way audio communication, full duplex
Live and audio compression g. 711, L16 (video)
Supports up to 32 GB memory card slot SD/SDHC card (it is recommended to use 4 class, or a higher level of SD card on the hard disk video)
Continuous recording video, video loop.Video alarm/event/schedule
Device configuration using a Web browser or PC monitoring software
Protocols HTTP, HTTPs and SSL, TCP, UDP, ICMP, RTSP, RTP, Telnet, IGMPv2 / v3, SNTP, FTP, SMTP, DHCP client, ARP, DNS, DDNS, NTP, SNMP, UPnP, 802.1 X, iSCSI
10/100 base-t Ethernet, automatic detection, half duplex/full duplex, RJ45
PoE accord with the standard IEEE 802.3 af
Size (high) x width x thick, including lens 55 x 72 x 72 mm (2.17 x 2.17 x 2.83 inches)
Weight (lens) of about 255 grams (0.56 pounds)
Installation quarter inch socket, the top and bottom
Working temperature camera 0 DHS C to + 50 DHS C (+ 32 DHS F to + 122 DHS F)
Working temperature of general power equipment 0 ° C to + 40 ° C (+ 32 ° F to 104 ° F) +
Storage temperature - 20 DHS C to + 70 DHS C (4 DHS F to + 158 DHS F)
Humidity 10% to 10% relative humidity (no condensation)
