• Flexible, rugged, discreet design
• 1-channel AXIS F41 with Wide Dynamic Range – Forensic Capture
• 4-channel AXIS F44 for multi-view surveillance
• Choice of standard, varifocal, pinhole and fisheye lenses
• Two-way audio
• Input/output ports for external devices

Discreet cameras for wide application

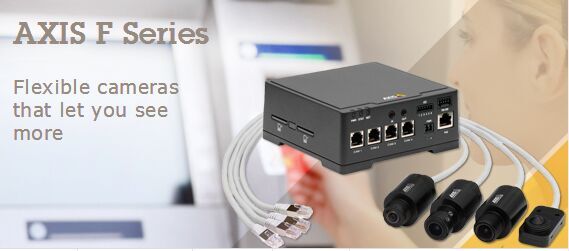

AXIS F Series offers flexible, high-performance 1080p cameras for extremely discreet indoor, outdoor and mobile surveillance applications. They are ideal for ATMs (automated teller machines), banks, stores, hotels, as well as rugged environments such as emergency vehicles, buses, trams and trucks.

Divided concept

Based on a divided network camera concept, AXIS F Series comprises AXIS F41and AXIS F44 Main Units and AXIS F Sensor Units. The main unit, which may be likened to the body of a camera, houses the processor, network, power and other connections. The sensor unit consists of a lens and image sensor with a3-m (10-ft.) or 12-m (39-ft.) cable. The divided concept enables the small sensor unit to be installed discreetly in tight places. The long cable from the sensor unit provides the flexibility to place the main unit where there is space. The main and sensor units are sold separately to give customers the ability to put together the hardware features that best suit the application. The units can also be easily relocated or changed after the initial installation, giving users additional flexibility.

 Video introducing AXIS F Series

AXIS F41 Main Unit connects to one sensor unit and supports Wide Dynamic Range – Forensic Capture and one memory card slot. It can provide HDTV 1080p performance at up to 50/60 frames per second for capturing fast-moving objects and generating smoother video. Meanwhile, AXIS F44 supports four sensor units, quad view and two memory card slots.

Both AXIS F41 and AXIS F44 support two-way audio, RS232 for integration of external data to the video, four input/output ports for connection to external equipment, and intelligent video applications. They can be powered by Power over Ethernet or an 8-28 V DC power supply.

The four available sensor units are the standard AXIS F1005-E and the fisheye AXIS F1035-E, both for indoor or outdoor use, and the varifocal AXIS F1015 and pinhole AXIS F1025 for indoor use.

Features	Main unit models
Indoor	AXIS F41 Main unit	AXIS F44 Main unit
Connection to no. of sensor units	1	4
Max video resolution	1920 x 1200	1920 x 1080
WDR – Forensic Capture
Quad view
Two-way audio
Alarm in-/outputs
Power over Ethernet
DC power
AXIS Camera Application Platform
Edge storage
